CSeries onboard charger DC310E

by Mike
(North Carolina)

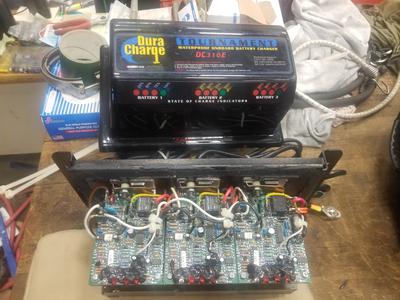

CSeries onboard charger

CSeries onboard charger

We've got a bad circuit board on one of the charging banks, and are looking for a full circuit diagram for troubleshooting and repair. Manufacturer support isn't helpful, as they stopped making the model ~17 years ago and don't have most of the old support files anymore.
