Mercury F25E sn # 0R-140066 YR 2006

by Jose Sanchez
(Dorado Puerto Rico)

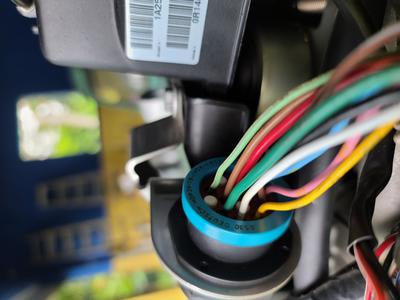

Mercury F25E  wiring

Mercury F25E wiring

I have 2 of these engines but I have a Yamaha 703 10 pin Remote control. I have the color code for the 703 connector but I need to know what is the color for the ignition wire at the engine

connector?

green starter
red + main
blck Ground
light green /light pink Trim up / down
white ?
brown ?
yelow ?
